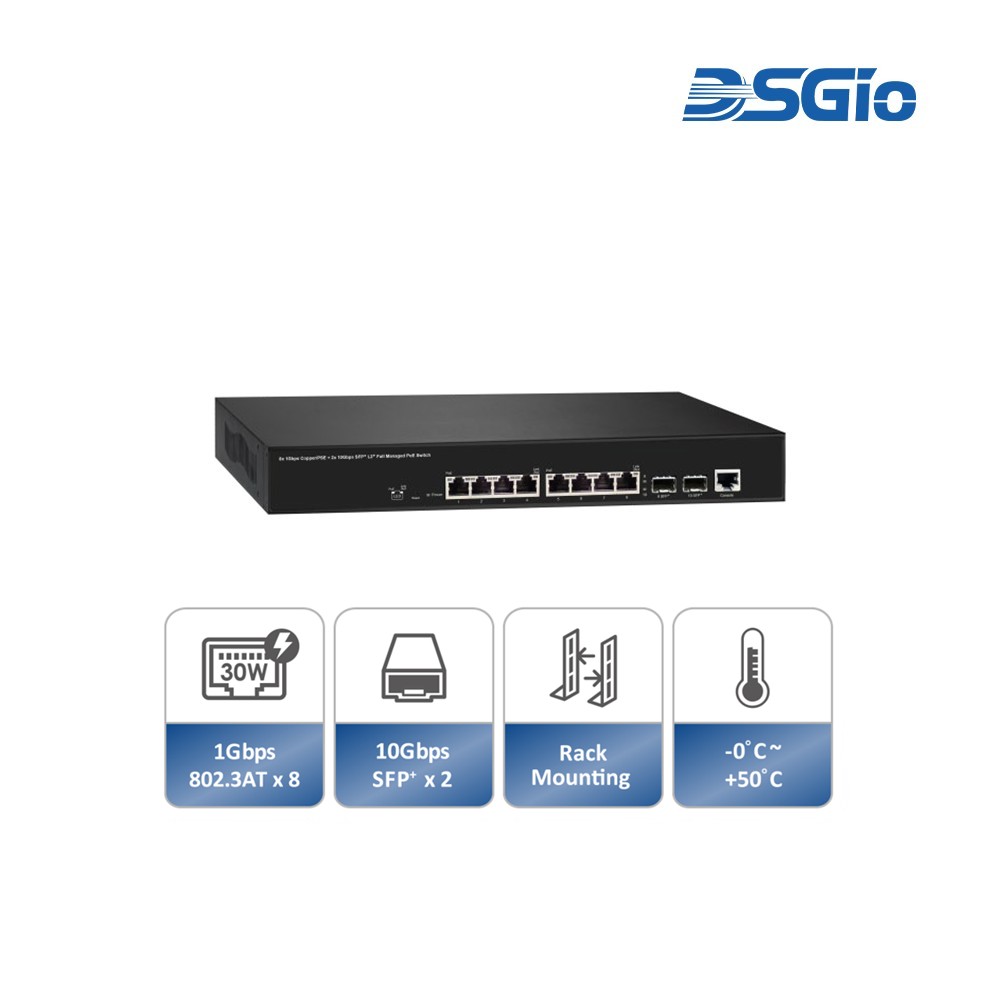

CMPS-8P210GF, L2 PoE

( Model Options: PoE Budget 180W or 240W )OverviewINTRODUCTIONThe DSGio CMPS-8P210GF Managed PoE Switch is designed for small to medium-scale network deployments, delivering a high-bandwidth, non-blocking switch fabric that enables low-latency, high-speed data transmission. It integrates multi-rate SFP uplinks for scalable network expansion and supports link aggregation to maximize throughput.Equipped with a comprehensive set of IEEE-compliant features, the switch ensures reliable and continuous service for connected IP devices. Advanced Layer 2 management capabilities, including VLAN, QoS, and security functions, provide efficient network segmentation and traffic prioritization.Its 19-inch rack-mountable form factor allows seamless integration into standard enterprise and data center environments.SPECIFICATIONSInterface10M/100M/1000Mbps RJ45 Port81G/2.5G/10Gbps SFP Slot2Console Port for CLI Management1System PerformancePacket Buffer16MbNOR Flash Memory512MbSDRAM Memory (DDR3)4GbMAC Address Table Size32KJumbo Frame10KBSwitching Capacity56GbpsForwarding Rate (64-byte)41.664MppsPoE FeaturesPoE Power OutputPer Port: IEEE 802.3af/at, Max. 15.4W/30WNumber of PSE Port8PoE TypeEnd-Span, Mode A MDIX: 1/2(-), 3/6( )Max. Power Consumption250W / 310WMax. PoE Budget180W / 240WExternal/Internal PowerInternal PowerPower Feeding Detecting Capability on PD●PD Alive Check●PD Classification●PoE Scheduling●Power Management(Per Port)Enable / Disable PoE Per Port●Priority Setting Per Port●Power Level Setting Per Port●Overloading Protection●L2 FeaturesAuto-Negotiation●Auto MDI/MDI-X●Flow Control (Duplex)802.3x (Full)●Back-Pressure (Half)●Spanning TreeIEEE 802.1D (STP)●IEEE 802.1w (RSTP)●IEEE 802.1s (MSTP)●VLANVLAN Group4KTagged Based●Port-Based●Q-in-Q●Voice VLANVoice VLAN with OUILink AggregationIEEE 802.3ad with LACP●Static Trunk●Max. Static Aggregation Group5Max. Port per Static Agg. Group8IGMP SnoopingIGMP Snooping v1/v2/v3Supports 1024 IGMP GroupsIGMP Static Multicast AddressesSupports 1024 Static Multicast AddressesIPv6 MLD SnoopingSupports 1024 MLD GroupsMLD Static Multicast AddressesSupports 1024 Static Multicast AddressesQuerier, Immediate Leave●Storm Control (Broadcast / Multicast / Unknown Unicast)●Loop Protection●QoS FeaturesNumber of Priority Queue8 Queues/PortRate LimitingIngressYes, 1 KBps/1ppsEgressYes, 1 KBps/1ppsDiffServ (RFC2474 Remarking)●Scheduling (WRR, Strict, Hybrid)●CoSIEEE 802.1p●IP ToS Precedence, IP DSCP●SecurityManagement System User Name / Password Protection●User PrivilegeSet User Privilege up to 15 LevelPort Security (MAC-based)●IEEE 802.1x Port-based Access Control●ACL (L2/L3/L4)●IP Source Guard●RADIUS (Authentication, Authorisation, Accounting)Authentication/AccountingTACACS AuthenticationHTTP & SSL (Secure Web)●SSH v2.0 (Secured Telnet Session)●MAC / IP Filter●L3 FeaturesStatic Route●ManagementCommand Line Interface (CLI)●Web Based Management●Telnet●Access Management FilteringSNMP/Web/SSH/TelnetFirmware Upgrade via HTTP●Dual Firmware Images●Configuration Download / Upload●SNMP (v1/v2c/v3)●RMON (1, 2, 3 & 9 Groups)●DHCP   (Server / Client / Relay / Option 82 / Snooping)●System Event / Error Log●TFTP (Trivial File Transfer Protocol)●NTP / LLDP●Cable Diagnostics●IPv6 Configuration●Port Mirroring●Physical CharacteristicsDimension (W x H x D)330 x 44 x 210 mmReset Button1 Reset Button for restoring defaultLEDPower, Link/ACT., PoECoolingFan CoolingEnclosureMetalInstallationDesktop / Rack MountWeight2.4KgSystem Power RequirementsSystem Power Input44-57 VDCMax. System Power Consumption20WPower Supply InformationPower Supply (250W)Input: 100-240 V~, 50-60Hz, 5A Max.Output: 56VDC / 4.46A, 250W Max.Power Supply (310W)Input: 100-240 V~, 50-60Hz, 5A Max.Output: 54VDC / 5.74A, 310W Max.Environment LimitsOperating Temperature0 ~ 50°CStorage Temperature-20 ~ 80°COperating Humidity10 ~ 90% RH (Non-condensing)Storage Humidity10 ~ 90% RH (Non-condensing)Protection and AlarmsESDDC Contact 4KV, Air 8KVSurgeAC Line to Line 1KV, Line to Ground 2KVCertificationsElectromagnetic Emissions (EMC)CE, FCC, UKCASafetyEN62368-1StandardIEEE 802.3 – 10Base-T●IEEE 802.3u – 100Base-TX●IEEE 802.3ab – 1000Base-T●IEEE 802.3z – 1000Base-SX/LX●IEEE 802.3ae – 10GBase (SFP )●IEEE 802.3af – Power over Ethernet (PoE)●IEEE 802.3at – Power over Ethernet (PoE )●IEEE 802.3az – Energy Efficient Ethernet (EEE)●IEEE 802.3x – Flow Control●IEEE 802.3ad – Link Aggregation Control Protocol (LACP)●IEEE 802.1Q – VLAN Tagging●IEEE 802.1v –   Protocol-Based VLAN●IEEE 802.1p – Class of Service (CoS)●IEEE 802.1D – Spanning Tree Protocol (STP)●IEEE 802.1w – Rapid Spanning Tree Protocol (RSTP)●IEEE 802.1s – Multiple Spanning Tree Protocol (MSTP)●IEEE 802.1AB – Link Layer Discovery Protocol (LLDP)●IEEE 802.1X – Port-Based Network Access Control●ITU-T G.8032/Y.1344 –  Ethernet Ring Protection Switching (ERPS)● (Optional)Product Features·       IP Source Guard and Port Security for enhanced access control·       IEEE 802.3af/at PoE, up to 30W per port·       Maximum PoE Budget of 180W model to support 802.3af devices or 240W model to support 802.3at devices.·       Non-blocking Switching Architecture·       Layer 2 Fully Managed Features, including MSTP, LACP, LLDP, sFlow, 802.1X, RADIUS, TACACS , and ACLs·       Integrated DHCP Server, DHCP Relay, and DHCP Snooping·       Support for Voice VLAN and PD Alive Check for improved device monitoring·       Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption·       Multicast Support, including IGMP Snooping (v1/v2/v3), IGMP Proxy, IGMP Querier, MVR, and MLD Snooping (v1/v2)  Source: DSGIO — CMPS-8P210GF, L2 PoE. Verify with manufacturer.
