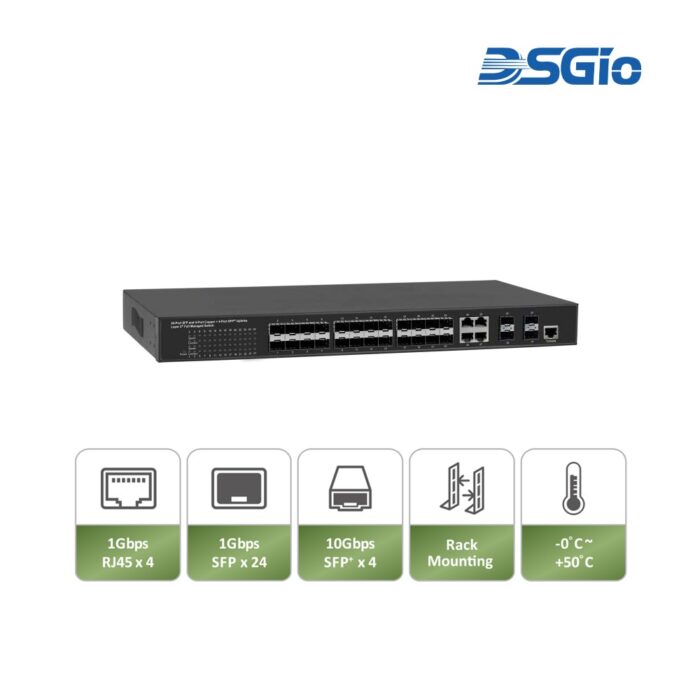

Available in Two Models: Single Internal AC Power Unit or Dual Power Input (One AC One DC Power Unit)OverviewINTRODUCTIONThe DSGio CMS-428XGF managed switch is engineered for medium to large-scale network deployments, delivering a high-bandwidth, non-blocking switching fabric that enables low-latency, high-speed data transmission. It features multi-rate SFP uplinks to support scalable network expansion and offers link aggregation to maximize throughput and redundancy. With IEEE-compliant standards, the switch ensures reliable and continuous operation of connected IP devices. Comprehensive Layer 2 management capabilities—including VLAN, QoS, and advanced security features—enhance network segmentation, traffic prioritization, and access control. Housed in a 19-inch rack-mountable chassis, the switch integrates seamlessly into enterprise and data center environments.SPECIFICATIONSInterface10M/100M/1000Mbps RJ45 Port4100M/1Gbps SFP Slot241G/2.5G/10Gbps SFP Slot4RJ45 Console Port for CLI Management1System PerformancePacket Buffer32MbNAND Flash Memory2GbNOR Flash Memory256MbSDRAM Memory (DDR3)4GbMAC Address Table Size32KJumbo Frame10KSwitching Capacity136GbpsForwarding Rate (64-byte)101.184MppsL2 FeaturesAuto-Negotiation●Auto MDI/MDI-X●Flow Control (Duplex)802.3x (Full)●Back-Pressure (Half)●Spanning TreeIEEE 802.1D (STP)●IEEE 802.1w (RSTP)●IEEE 802.1s (MSTP)●VLANVLAN Group4096Tagged Based●Port-Based●Q-in-Q●Voice VLANVoice VLAN with OUIMAC-based / Protocol-based / IP Subnet-based VLAN●Link AggregationIEEE 802.3ad with LACP●Static Trunk●Max. Static Aggregation Group16Max. Port per Static Agg. Group8IGMP SnoopingIGMP Snooping v1/v2/v3Supports 1024 IGMP GroupsIGMP Static Multicast AddressesSupports 1024 Static Multicast AddressesIPv6 MLD SnoopingSupports 1024 MLD GroupsMLD Static Multicast AddressesSupports 1024 Static Multicast AddressesQuerier, Immediate Leave●Storm Control (Broadcast / Multicast / Unknown Unicast)●Loop Protection●QoS FeaturesNumber of Priority Queue8 Queues/PortRate LimitingIngressYes, 1 KBps/1ppsEgressYes, 1 KBps/1ppsDiffServ (RFC2474 Remarking)●Scheduling (WRR, Strict, Hybrid)●CoSIEEE 802.1p●IP ToS Precedence, IP DSCP●SecurityManagement System User Name / Password Protection●User PrivilegeSet User Privilege up to 15 LevelPort Security (MAC-based)●IEEE 802.1x Port-based Access Control●ACL (L2/L3/L4)●IP Source Guard●RADIUS (Authentication, Authorisation, Accounting)●TACACS ●HTTP & SSL (Secure Web)●SSH v2.0 (Secured Telnet Session)●MAC/IP Filter●DHCP Snooping (DHCP Protection)●Port Isolation●BPDU Guard●STP Root Guard / Edge Safe Guard / Restricted Role●Dynamic ARP Protection●ManagementCommand Line Interface (CLI)●Web Based Management●Telnet●Access Management FilteringSNMP/Web/SSH/TelnetFirmware Upgrade via HTTP●Dual Firmware Images●Configuration Download / Upload●SNMP (v1/v2c/v3)●RMON (1, 2, 3 & 9 Groups)●DHCP (Server / Client / Relay / Option 82 / Snooping)●System Event / Error Log●TFTP (Trivial File Transfer Protocol)●NTP / LLDP●Cable Diagnostics●IPv6 Configuration●Port Mirroring●Physical CharacteristicsDimension (W x H x D)440 x 44 x 220 mmLED IndicatorPower, Speed, Link/Act.CoolingFan CoolingEnclosureMetalInstallationDesktop / Rack MountWeight3.1KgSystem Power RequirementsSystem Power Input12VDCMax. System Power Consumption50WPower Supply InformationInternal Power SupplyInput: 100-240 V~, 50-60Hz, 2.0A Max.Output: 12VDC/8.33ARedundant Power SupplyInput: 100-240 V~, 50-60Hz, 1.8A Max.Output: 12VDC/6.25AEnvironment LimitsOperating Temperature0 ~ 50°CStorage Temperature-20 ~ 80°COperating Humidity10 ~ 90% RH (Non-condensing)Storage Humidity10 ~ 90% RH (Non-condensing)Protection and AlarmsESDDC Contact 4KV, Air 8KVSurgeAC Line to Line 1KV, Line to Ground 2KVCertificationsElectromagnetic Emissions (EMC)CE, FCC, UKCASafetyEN62368-1StandardIEEE 802.3 – 10Base-T●IEEE 802.3u – 100Base-TX●IEEE 802.3ab – 1000Base-T●IEEE 802.3z – 1000Base-SX/LX●IEEE 802.3ae – 10GBase (SFP )●IEEE 802.3az – Energy Efficient Ethernet (EEE)●IEEE 802.3x – Flow Control●IEEE 802.3ad – Link Aggregation Control Protocol (LACP)●IEEE 802.1Q – VLAN Tagging●IEEE 802.1v – Protocol-Based VLAN●IEEE 802.1p – Class of Service (CoS)●IEEE 802.1D – Spanning Tree Protocol (STP)●IEEE 802.1w – Rapid Spanning Tree Protocol (RSTP)●IEEE 802.1s – Multiple Spanning Tree Protocol (MSTP)●IEEE 802.1AB – Link Layer Discovery Protocol (LLDP)●IEEE 802.1X – Port-Based Network Access Control●ITU-T G.8032/Y.1344 – Ethernet Ring Protection Switching (ERPS)● Product Features· Built-in 24x Gigabit SFP Ports for flexible, high-speed fiber connectivity· IEEE 802.3az Energy Efficient Ethernet for optimized power consumption· Non-blocking Switching Architecture ensures full wire-speed forwarding without data loss· Integrated DHCP Server, Relay, and Snooping for efficient IP address management· Layer 2 Full Managed Features, including MSTP, LACP, LLDP, sFlow, 802.1X, RADIUS, TACACS , and ACL· Multicast Support, including IGMP Snooping (v1/v2/v3), IGMP Proxy, IGMP Querier, MVR, and MLD Snooping (v1/v2)· Auto Discovery of IP Devices and Network Continuity Testing for simplified diagnostics Power Supply Unit Bundle ConfigurationModel No.Power InputOperating TemperatureCMS-428XGF100-240VAC0 ~ 50°CCMS-428XGF-AD100-240VAC and 12-56VDC0 ~ 50°CModel Name Abbreviation with AD denotes Dual Power InputSource: DSGIO — CMS-428XGF, L2 Switch. Verify with manufacturer.
