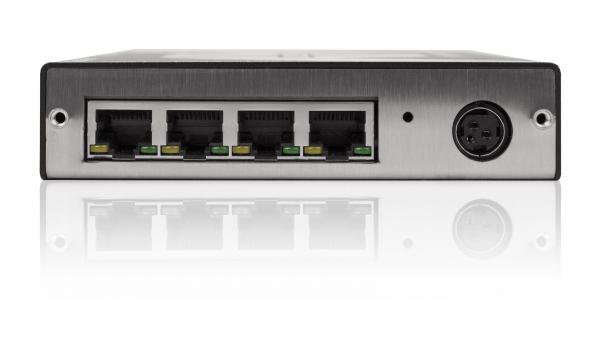

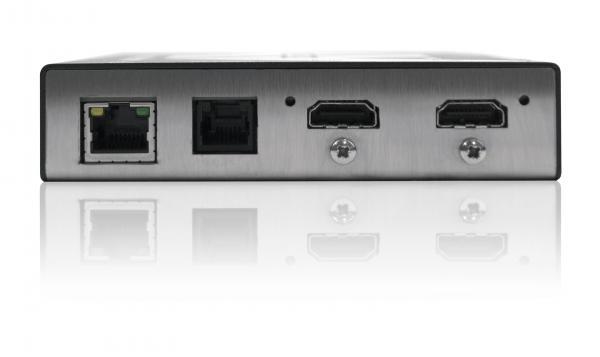

Description ADDERLink DV104K is a high performance digital video extender and splitter that enables you to locate your critical play out hardware in a secure and temperature controlled environment away from the display point environment whilst maintaining the same user experience. The ALDV104K uses an uncompressed video system where every frame is sent without loss with resolutions up to 1920 x 1200@60Hz (WUXGA) including 1080p, 720p and 480p resolutions. With the ALDV104K, video, audio and power all pass along a single CATx cable, providing up to 50m of extension. Distance can be dependent upon CATx cable types and the number of connection breaks for patch panels and wall plates. See overleaf for details. FeaturesSpecificationsMore informationPackahge ContentsFeatures Proof of Display via IP network Source Failover Security API for 3rd Party Integration Digital audio Perfect HD Digital Video 50 meters over a single CATx cable Highly energy efficient – no external power supplies are required EDID Management Plug and Play Specifications Hardware compatibility All computers with HDMI connections – requirement dependent HDMI interface The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920×1200) @60Hz and 24 bit color depth. Does not support HDCP Software compatibility All known operating systems Audio The system delivers eight channels of HDMI audio with sample sizes of 16, 20 or 24 bit at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz. Connections on the ALDV104K 2 x HDMI type A male, 4 x CATx sockets for link outputs,1 x 10/100Base-TX network port (config),1 x 9-way D-sub RS232C port, 2.5mm DC power jack Operating temperature 0 to 40ºC / 32 to 104ºF Physical design Compact case, robust metal construction: 115mm / 4.5’’ (w) x 114mm / 4.5’’(d) x 26mm / 1’’(h). Weight 440g / 0.97 lb Power 3pin Toby jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 12VDC 18W output from power adapter Approvals CE, FCC Resolution Frequency Patch Connections Cable Type Distance 1920×1200 60Hz 0 CAT7a 50 meters 1920×1200 60Hz 0 CAT6a (shielded) 50 meters 1920×1200 60Hz 2 CAT6a (shielded) 40 meters 1920×1200 60Hz 2 CAT7a 40 meters Note: Distances are achieved using single lengths of trunk/bulk cable. For each break/patch connection reduce distance by 5 meters. Preferably patch cables should be of type CAT7a and less than 2 meters. Patch cables over 2 meters must be CAT7a. More information Proof of Display via IP network The unit determines if the entire system is operating correctly and video is visible on the monitors. It can detect if video is present from the player and whether the cables to the monitors are attached and the monitor is turned on. This information is available by an IP socket thus allowing remote diagnostics and integration into content management systems. Source Failover The unit can be set to detect that a video stream is present at the input. The unit can be set to automatically switch over to the second video input if the primary fails. Security Security on the web interface is by HTTP digest authentication (RFC 2617) with username and password as requested information. API for 3rd Party Integration The API documentation to control and receive data from the unit is provided with the system. Digital audio Supports 8 channels of HDMI audio. Perfect HD Digital Video The ALDV104T uses an uncompressed video system where every frame is sent without loss with resolutions up to 1920 x 1200@60Hz (WUXGA) including 1080p, 720p and 480p resolutions. 50 meters over a single CATx cable Video, audio and power all pass along a single CATx cable, providing up to 50m of extension. Distance can be dependent upon CATx cable types and the number of connection breaks for patch panels and wall plates. See overleaf for details. Dual Head Extension With two inputs, the system is suited to extending and splitting dual head systems. Highly energy efficient – no external power supplies are required The receivers are designed to be highly power efficient, using less than an eighth of the power required by competing systems. Power is supplied along the CATx cable meaning the support infrastructure required is minimal. EDID Management The system has intelligent EDID management allowing the true characteristics of the monitor to be passed back to the computer. Plug and Play The DV104T is delivered in a zero config state so you can plug and play. There is no need for additinal drivers or software. Packahge Contents 1 x ALDV104T 1 x Power supply 4 x ALDV100R 1 x 1.5m HDMI cable Information wallet
