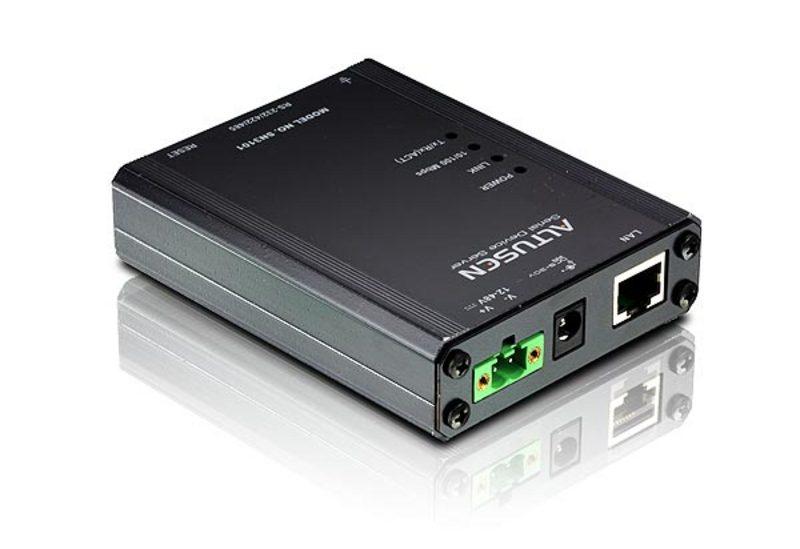

Description The SN3101 3-in-1 Serial Device Server supports RS-232, RS-422 and RS-485 data transfers, as well as providing Ethernet connectivity for a wide variety of serial devices used in commercial applications. These include industrial control,data acquisition, access control, environment monitoring,banking, telecoms, remote site management, etc. This total serial data transfer system transforms the capability of legacy serial devices, and allows them to take advantage of the speed and reliability of today’s modern communication techniques. FeaturesSpecificationsPackage ContentsFeatures SN3101 Features: Provides over IP access for industrial serial devices. Software selectable RS-232/422/485 3-in-1 serial port Built-in 15KV ESD serial port protection Max. baud rate: 460 Kbps Wide range of versatile serial operation modes – Console Management, Real COM, TCP Server, TCP Client, UDP, Modbus, Serial Tunnel and Virtual Modem High security via 128-bit SSL encryption for serial data transmission Redundancy support via multiple simultaneous Real COM, TCP Server, and TCP Client connections 64 Kbyte port buffer prevents data loss when the network is down Real COM driver for Windows 2000/XP/2003/Vista Real TTY driver for Linux, Fixed TTY driver for Unix* Modbus Ethernet-to-Serial support Modem emulation enables existing modem-based applications to make connections over IP networks Virtual Terminal support (VT320, VT52, VT100, VT220) System configuration via Web Console (HTTP/HTTPS), Telnet/SSH Console and Windows utility Backup/restore and firmware upgrading via Web Console(HTTP/HTTPS) and Windows utility Easy-to-use Windows utility (2000/XP/2003/Vista) for auto discovery, multiple device setting and monitoring Centralized external authentication support for RADIUS, LDAP(S), MS Active Directory SNMP MIB II and RS-232 MIB for network management SMTP and SNMP trap event notification Choice of power input: AC-DC adapter or DC direct* Fixed TTY Driver Supports 1) Sco Unix, Sco OpenServer; 2) Unix Ware 7, SVR 5; 3) Unix Ware 2.1, SVR 4.2; 4) QNX 4.25, QNX 6; 5) FreeBSD; 6) Solaris 10; 7) AIX 5.x; 8) HP-UX 11i Specifications Connectors Serial 1 x DB-9 Male (Black) Network 1 x RJ-45 (Black) Power 1 x 2-pin Terminal Block (Green) 1 x DC Jack (Black) Switches Reset 1 x Semi-recessed Pushbutton LEDs Power 1 (Green) Link 1 (Green) 10/100 Mbps 1 (Orange/Green) TxRx (ACT) 1 (Green) Power Input Power Adapter 100-240V AC; 50/60 Hz Power Line Protection 4KV burst (EFT), EN61000-4-4 2KV surge, EN61000-4-4 Power Consumption 9V, 2.7W Interfaces Serial RS-232/422/485; Software selectable 460Kbps TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND Tx , Tx-, Rx , Rx-, RTS , RTS-, CTS , CTS-, GND Data , Data-, GND 15 KV ESD Protection for the serial port None, Even, Odd, Mark, Space 5, 6, 7, 8 1, 1.5, 2 None, XON/XOFF, RTS/CTS Network 10/100BaseTX; Autosensing 1.5 KV Magnetic Isolation ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IP, TCP, UDP, NTP, PPP, RADIUS, Telnet, SNMP, SNMP Trap, SMTP, SSH Regulatory Approval FCC Class A, CE Class A, RoHS Environmental Operating Temperature 0 – 60°C Storage Temperature -20 – 85°C Humidity 0 ~ 95% RH, Non-condensing Physical Properties Housing Metal Weight 0.22 kg Dimensions (L x W x H) 10.69 x 7.90 x 2.44 cm Package Contents 1 x SN3101 Serial Device Server 1x Power Adapter 1x DC Terminal Connector 1x Mounting Kit 1x User Instructions 1x Software CD
