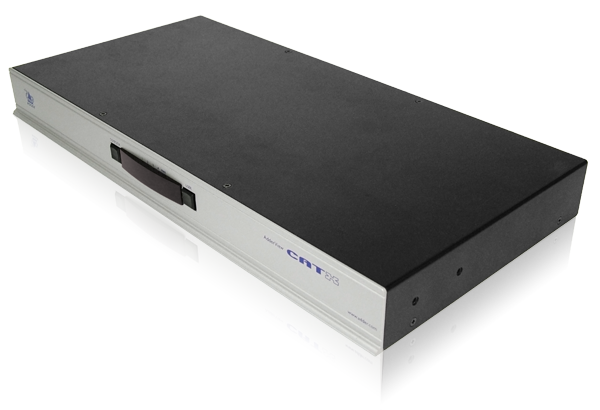

Description The ADDERView AVX4016 is part of a range of secure, KVM via CATx switches that provide 4 concurrent local, remote or global users with BIOS-level control of up to 24 multiplatform servers. A “plug-and-play,” 1U appliance, the ADDERView AVX4016 is a completely self-contained system that installs in minutes combining high security, flexibility, integrated remote power control, faultless quality video and optional CD quality audio. The two members of the series are the ADDERView AVX4016 and AVX4024 supporting 16 or 24 CATx computer connections, 4 simultaneous users (1x local PS/2 or USB, 4 x remote over CATx) and the ADDERView AVX4016IP and AVX4024IP CATx IP supporting 16 or 24 CATx computer connections, 4 simultaneous users (1x local PS/2 or USB, 2 x remote over CATx, 1 x global over IP) FeaturesDiagramSpecificationsFurther InformationFeatures Physical Design: 1U 19″ High metal case Local KVM Console Connection Computer and remote CATx user connection Power connection Other Connections: DB9 Female for flash upgrade, syncing boxes and DB9 male for RS232 triggered power boxes Multi-platform support Hardware compatibility: Supports PC, Sun (USB & 8-pin styles), Mac (USB), RS/6000, Alpha and SGI computers using PS/2, USB or Sun computer interface modules. Operating Temperature: 0-40 deg C (32 to 104 deg F) CE & FCC Approval Diagram Specifications Physical design ADDERView CATx: 1U high metal case 482mm/19” (w), 215mm/8.5” (d), 45mm/1.8” (h) ADDERView CATxIP: 1U high metal case 482mm/19” (w), 280mm/8.5” (d), 45mm/1.8” (h) (Rack mount kits included) Local KVM console connection Video: HDD15. Keyboard/Mouse: MiniDin6 / USB type A. Audio: 3.5mm stereo jack Computer and remote CATx user connections All RJ45 style Network port (ADDERView IP models only) RJ45 10/100Mb auto-sensing Ethernet port Power connections IEC style power lead (100 – 240V AC, 50-60Hz). Redundant via 2.5mm DC jack (5V DC, 6A) Other connectors DB9 female for flash upgrade, syncing boxes and other special functions. DB9 male for RS232 triggered power switches. DB9 male (ADDERView IP only) for modem connection. Hardware compatibility Supports PC, Sun (USB & 8-pin styles), Mac (USB), RS/6000, Alpha and SGI computers using PS/2, USB or Sun computer interface modules. Software compatibility Operates with all known software and operating systems including Windows (all); DOS; Linux, Unix, BSD; all Sun OS; all Mac OS; NetWare. Operating Temperature 0 – 40 deg C (32 to 104 deg F) Approvals CE, FCC Further Information Exceptionally high video performance to local, remote and global users True multi-platform support Flash upgradeable CAMs available for PS/2, USB and Legacy Sun keyboard and mouse support with optional audio Country code reporting DDC and keyboard and mouse emulation PS/2 or USB keyboard and mouse control Expand using CATx cascade connections with simple user intuitive set up Optional CD quality audio when using correct Computer Interface Module (CAM) Power control functions supported via dedicated serial port Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) Global users (IP) can chose between HTTP or RealVNC for highly secure connections and high performance.
