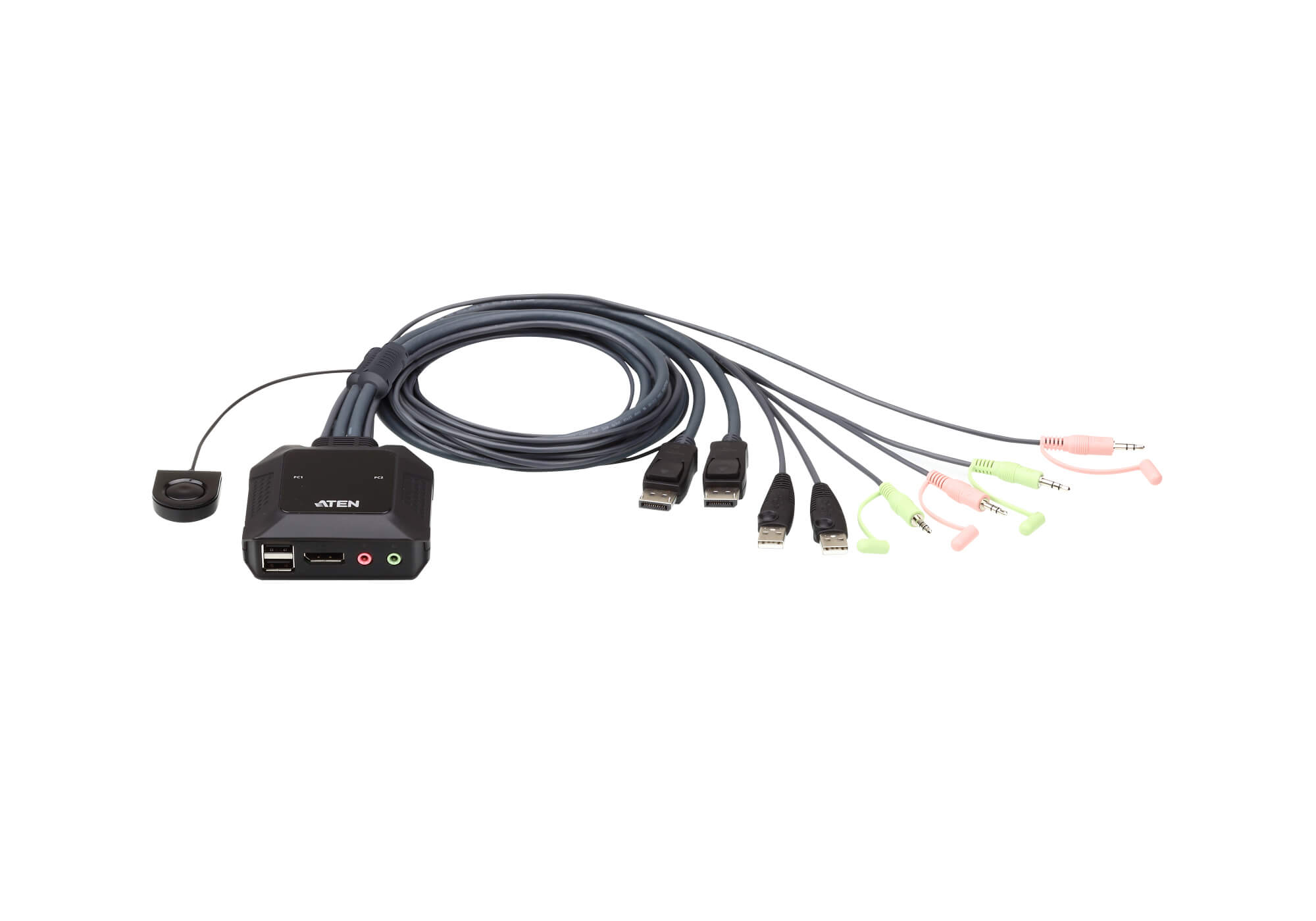

Description The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton. The CS22DP supports multiplatform operations allowing you to switch between two PC’s running different operating systems. Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized. It’s fast and easy to set up the CS22DP. Simply plug the KVM cables into their respective ports on the CS22DP and on the computers. There is no need to install software or configure devices – just plug and play. FeaturesSpecificationsDiagramPackage Contents One KVM console controls two USB DisplayPort computers Superior video quality – up to 2560 x 1600 @ 60Hz Computer selection via Remote Port Selector OS Support: Windows, Mac and Linux Supports DisplayPort Dual-Mode (DP )* for directly outputting single-link HDMI and/or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP adapter Supports microphone and speakers The USB ports can be used for USB peripheral sharing** Supports USB hot-plugging HDCP Compatible Bus-powered*DisplayPort Dual-Mode (DP ) requires the use of a powered DP adapter. The graphics source must be DP compliant. ** The CS22DP may require an external power supply via a micro USB port Computer Connections 2 Port Selection Remote Port Selector Connectors Console Ports 2 x USB Type A Female 1 x DisplayPort Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink) Computer Ports 2 x USB Type A Male 2 x DisplayPort Male 2 x 3.5mm Audio Plug Male (Green) 2 x 3.5mm Audio Plug Male (Pink) Power (Optional) 1 x USB Micro Type B Female LEDs KVM Port (On Line /Selected) 2 (White) Cable Length KVM 2 x 1.2 m Remote Port Selector 1.8 m Emulation Keyboard / Mouse N/A Video 2560 x 1600 @ 60Hz Power Consumption DC 5V, 6.5W Environmental Operating Temperature 0 – 50°C Storage Temperature -20 – 60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Plastic Weight 0.35 kg ( 0.77 lb ) Dimensions (L x W x H) 8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. 1 x CS22DP 2-Port USB DisplayPort Cable KVM Switch 1 x User Instructions
