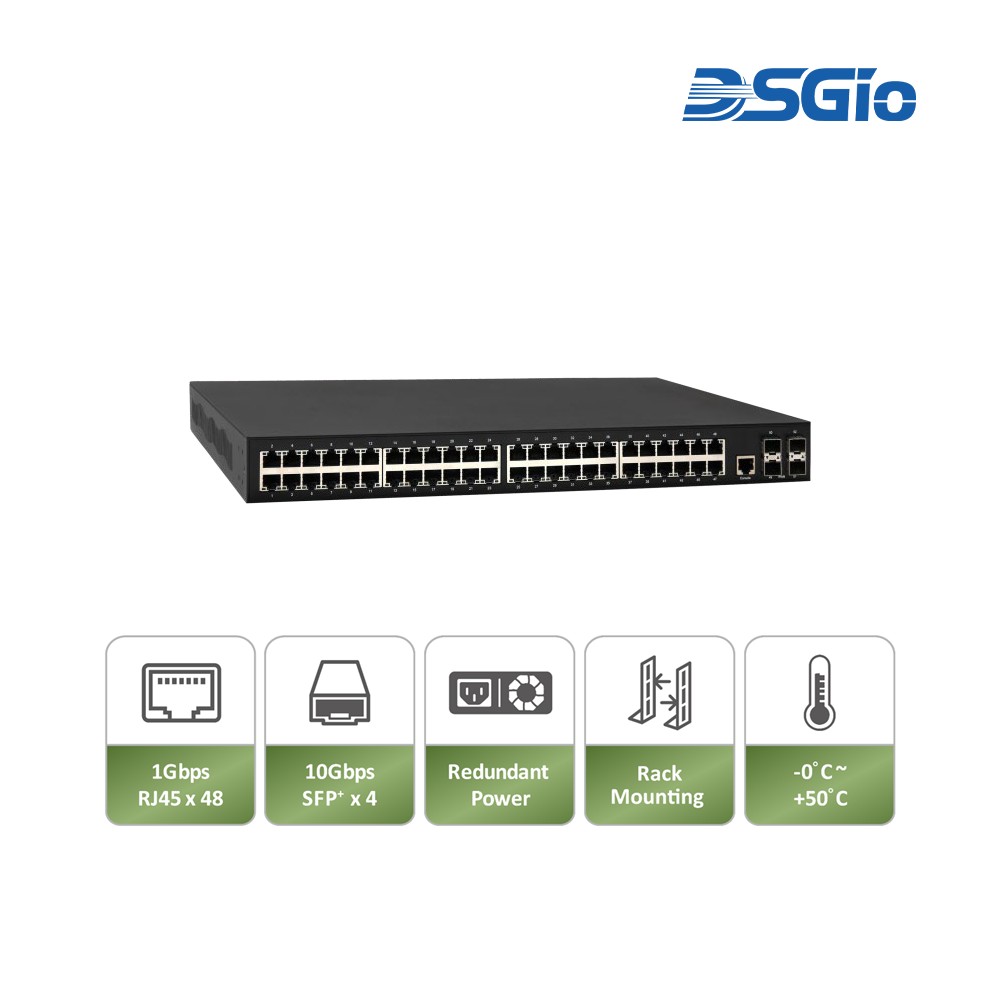

CMS-48410GF, L2 Switch

( Available in Two Models: Single Internal Power Supply or Redundant Hot-Swappable Power Module )OverviewINTRODUCTIONThe DSGio CMS-48410GF L2 managed switch is engineered for medium- to large-scale network deployments, delivering a high-bandwidth, non-blocking switch fabric for low-latency, high-speed data transmission. It features multi-rate SFP uplinks for scalable network expansion and supports link aggregation to increase throughput. IEEE-compliant design ensures uninterrupted service for connected IP devices, while advanced Layer 2 management, including VLAN, QoS, and robust security, optimises network segmentation and traffic prioritization. The 19-inch rack-mountable chassis enables seamless integration into enterprise and data center environments.SPECIFICATIONSInterface10M/100M/1000Mbps RJ45 Ports481G/2.5G/10Gbps SFP Slots4Console Port for CLI Management1System PerformancePacket Buffer32MbNAND Flash Memory2GbNOR Flash Memory256MbSDRAM Memory (DDR3)4GbMAC Address Table Size32KJumbo Frame10240Switching Capacity176GbpsForwarding Rate (64-byte)130.94MppsL2 FeaturesAuto-Negotiation●Auto MDI/MDI-X●Flow Control (Duplex)802.3x (Full)●Back-Pressure (Half)●Spanning TreeIEEE 802.1D (STP)●IEEE 802.1w (RSTP)●IEEE 802.1s (MSTP)●VLANVLAN Group4KTagged Based●Port-Based●Q-in-Q●Voice VLANVoice VLAN with OUILink AggregationIEEE 802.3ad with LACP●Static Trunk●Max. Static Aggregation Group26Max. Port per Static Agg. Group16IGMP SnoopingIGMP Snooping v1/v2/v3Supports 1024 IGMP GroupsIGMP Static Multicast AddressesSupports 1024 Static Multicast AddressesIPv6 MLD SnoopingSupports 1024 MLD GroupsMLD Static Multicast AddressesSupports 1024 Static Multicast AddressesQuerier, Immediate Leave●Storm Control (Broadcast / Multicast / Unknown Unicast)●Loop Protection●QoS FeaturesNumber of Priority Queue8 Queues/PortRate LimitingIngressYes, 1 KBps/1ppsEgressYes, 1 KBps/1ppsDiffServ (RFC2474 Remarking)●Scheduling (WRR, Strict, Hybrid)●CoSIEEE 802.1p●IP ToS Precedence, IP DSCP●SecurityManagement System User Name / Password Protection●User PrivilegeSet User Privilege up to 15 LevelPort Security (MAC-based)●IEEE 802.1x Port-based Access Control●ACL (L2/L3/L4)●IP Source Guard●RADIUS (Authentication, Authorisation, Accounting)●TACACS ●HTTP & SSL (Secure Web)●SSH v2.0 (Secured Telnet Session)●MAC / IP Filter●L3 FeaturesStatic Route●ManagementCommand Line Interface (CLI)●Web Based Management●Telnet●Access Management FilteringSNMP/Web/SSH/TelnetFirmware Upgrade via HTTP●Dual Firmware Images●Configuration Download / Upload●SNMP (v1/v2c/v3)●RMON (1, 2, 3 & 9 Groups)●DHCP (Server / Client / Relay / Option 82 / Snooping)●System Event / Error Log●TFTP (Trivial File Transfer Protocol)●NTP / LLDP●Cable Diagnostics●IPv6 Configuration●Port Mirroring●Physical CharacteristicsDimension (W x H x D)Internal PSU: 440 x 44 x 330 mmRedundant PSU: 440 x 44 x 380 mmWith PSU Handle & Latch Button: 440 x 44 x 410 mmReset ButtonN/ALEDPower, Link/ACT.CoolingFan CoolingEnclosureMetalInstallationDesktop / Rack MountWeightRefer to PSU Bundled Configuration TableSystem Power RequirementsSystem Power Input12V DCMax. System Power Consumption37WPower Supply InformationInternal Power SupplyInput: 100-240 V~, 47-63Hz, 1.5A Max.Output: 12V DC / 5.4A (65W Max.)Redundant Power SupplyInput: 100-240 V~, 47-63Hz, 2-1A Max.Output: 12V DC / 5A (60W Max.)Environment LimitsOperating Temperature0 ~ 50°CStorage Temperature-20 ~ 80°COperating HumidityMax. 90% RH (Non-condensing)Storage HumidityMax. 90% RH (Non-condensing)Protection and AlarmsESDDC Contact 4KV, Air 8KVSurgeAC Line to Line 1KV, Line to Ground 2KVCertificationsElectromagnetic Emissions (EMC)CE, FCC, UKCASafetyEN62368-1StandardIEEE 802.3 – 10Base-T●IEEE 802.3u – 100Base-TX●IEEE 802.3ab – 1000Base-T●IEEE 802.3z – 1000Base-SX/LX●IEEE 802.3ae – 10GBase (SFP )●IEEE 802.3az – Energy Efficient Ethernet (EEE)●IEEE 802.3x – Flow Control●IEEE 802.3ad – Link Aggregation Control Protocol (LACP)●IEEE 802.1Q – VLAN Tagging●IEEE 802.1v –   Protocol-Based VLAN●IEEE 802.1p – Class of Service (CoS)●IEEE 802.1D – Spanning Tree Protocol (STP)●IEEE 802.1w – Rapid Spanning Tree Protocol (RSTP)●IEEE 802.1s – Multiple Spanning Tree Protocol (MSTP)●IEEE 802.1AB – Link Layer Discovery Protocol (LLDP)●IEEE 802.1X – Port-Based Network Access Control●ITU-T G.8032/Y.1344 – Ethernet Ring Protection Switching (ERPS)●Product Features·       IP Source Guard and Port Security·       Non-blocking Switching Architecture·       Layer 2 Fully Managed Features, including MSTP, LACP, LLDP, sFlow, 802.1X, RADIUS, TACACS , and ACLs·       Integrated DHCP Server, DHCP Relay, and DHCP Snooping·       Support for Voice VLAN·       Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption·       Multicast Support, including IGMP Snooping (v1/v2/v3), IGMP Proxy, IGMP Querier, MVR, and MLD Snooping (v1/v2)Power Supply Unit Bundle ConfigurationModel No.Power Source Unit (PSU)WeightDimension (W x H x D)CMS-48410GF1 (Internal Power Supply)3.8 Kg440 x 44 x 330 mmCMS-48410GF-RP2 (Hot-Swappable Power Module in Redundant Config.)5.3 Kg440 x 44 x 410 mmModel Name Abbreviation with RP denotes Redundant Power.Note: The RP switch hardware design supports dual redundant power supplies. This feature is hardware-based and not user-configurable.Connection Diagram Datasheet CMS-48410GF, Commercial Managed Switch Datasheet Rev1.1 PDF Quick Start Guide CMS-48410GF, Commercial Managed Switch Quick Start Guide CMS-48410GF-QSG01.1 PDF CMS-48410GF, Commercial Managed Switch Quick Start Guide CMS-48410GF-QSG01.1a PDF Manual CMS-48410GF, Commercial Managed Switch CLI Guide CMS-48410GF-CLI01.1 PDF CMS-48410GF, Commercial Managed Switch Manual CMS-48410GF-UM01.1 PDF Firmware CMS-48410GF-RP_v3.5.0_20251105Source: DSGIO — CMS-48410GF, L2 Switch. Verify with manufacturer.
