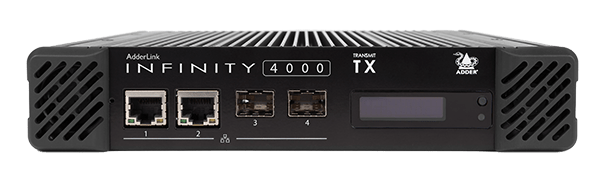

Description ADDERLink Infinity ALIF4021T is a dual-head 4K DisplayPort, Audio and USB 2.0 Fiber IP KVM Transmitter is part of the Adder Infinity 4000 4K Digital Extension / Matrix KVM solution. ALIF4021T transmitter requires at least one ALIF4021R receiver to operate. The ALIF4000 delivers pixel-perfect, color accurate picture quality at 4K60 with USB2.0 with fast switching. Fully compatible with the existing ADDERLink INFINITY range, and supported by the trusted ADDERLink INFINITY Manager (AIM), the ALIF4000 can be used as a point-to-point extender or easily integrated into a wider matrix system; enabling KVM users to migrate to 4K without the need to rip and replace. FeaturesSpecificationsPackage ContentsMore Features Dual-head 4K, video, audio and USB over a single fiber connection Pixel-perfect, color accuracy at 4K60 Bi-directional analog audio Adder’s USB True Emulation for fast switching Backwards compatible with existing ADDERLink INFINITY infrastructure Plug and play Adder ALIF4021T Specifications Mechanical Height 1.6 in. (40 mm.) Width 8.5 in. (215 mm.) Depth 8.3 in. (210 mm.) Weight 1.8 lbs. (4 kg.) Packing Box Dimensions: (L) 285mm /11.2-inch (W) 245mm/9.6inch (D) 145mm/5.7inch Weight: 2.5kg / 5.5lb Materials Aluminium and steel construction Environmental Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -10°C to 60°C (14°F to 140°F) Storage and operating relative humidity 10-90% non-condensing Altitude < 3000m Power External power 12VDC, 5A Typical power consumption 20W BTU 68.24BTU/hr Supported Hardware Computers DisplayPort Peripherals USB, Audio, Serial RS232 Max video resolution Supports 4K UHD or 4K DCI (True Cinema 4K) and refresh rates to 60Hz USB 4 ports of USB2.0 with USB True Emulation to support keyboard, mouse and touch. USB device seen as: 7 or 13 port hub Audio Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out Ethernet 10GbE (No 10/100/1000 support) Standards Approved Agency CE, FCC Connections Transmitter Connections Computer: 2x DisplayPort, 2x USB type B, 2x 3.5mm audio jack sockets, 1x DB9 socket. Ethernet: 2x 8p8c (RJ45), 2x SFP cages. Power: 3 pin Kycon socket. ALIF4021T Transmitter VSCD10 6ft DisplayPort cable VSC24 6ft USB 2.0 A-to-B Cable VSC22 6.6ft Audio cable (3.5mm stereo jacks) PSU-IEC-12VDC-5A Power adapter and US power cord Self-adhesive rubber feet Quick start guide and Safety document 2-Year Limited Warranty Adder ALIF4021T Features Infinite Flexibility With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network. Point-to-point extension (local / over-IP) AV / KVM Switch multi-point matrix (over-IP) Sharing a single target (over-IP) Multicasting to many receivers (over-IP) Command Center / Video Wall Controller (over-IP) Learn more Pixel Perfect 4K @ 60Hz video, real time control Uncompressed video extension at a maximum of 4K UHD (3840×2160) or 4K DCI / True Cinema 4K (4096×2160) with refresh rates to up to 60fps. Using a spatially-lossless encoding system, with 1:1 pixel mapping, ALIF4021T provides pixel perfect and color accurate video with no artefacts. The video you receive is the same as the video leaving the remote computer. Fiber IP Network-based Leverage existing standard 10GbE networking infrastructure to extend or matrix your computing resources to your users! AdderLink Infinity 4K units can be used as point-to-point extenders over 10GbE fiber cable, or made into a flexible IP-based matrix using standard 10GbE fiber switches and the AIM Manager. Infinity 4K is the perfect solution for any application including for an office, campus, command center, video wall, editing studio, or as a digital signage solution. Unlimited extension distances 10GbE Fiber Optic fiber technology enables offers much greater extension distances over traditional CatX cables. Extension distance is also not limited to a single fiber cable length – If you need to extend further, simply add a 10GbE network device. This can be repeated many times for longer distances. USB 2.0 with emulation and class control Enables connection of USB devices from mice & keyboards to touch screens, graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology also allows for fast keyboard & mouse or touch switching. For applications where security is of high importance, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices. Enterprise-grade security All Adder Infinity units have built-in security measures compliant with universal enterprise grade security standards inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication. Intelligent EDID management Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without the additional configuration. Redundant network operation Adder ALIF4021T units are able to detect whether the network is in operation and can automatically change to its second network 10GbE SFP port if it detects a failure. Backwards compatible with existing Adder INFINITY series* Adder INFINITY 4000 is backwards compatible with other INFINITY series models. You can access any current INFINITY transmitter unit remotely from a 4000 receiver. Other INFINITY series receiver units cannot access the 4000 transmitters from outside the fiber network. Plug and Play AdderLink Infinity 4K extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed. Rack mounting option Adder Infinity 4K units can be used at a desktop or be rack mounted two side-by-side in 1U with the optional RMK12 mounting kit. Additional kits for different mounting methods are also planned for the future release.
